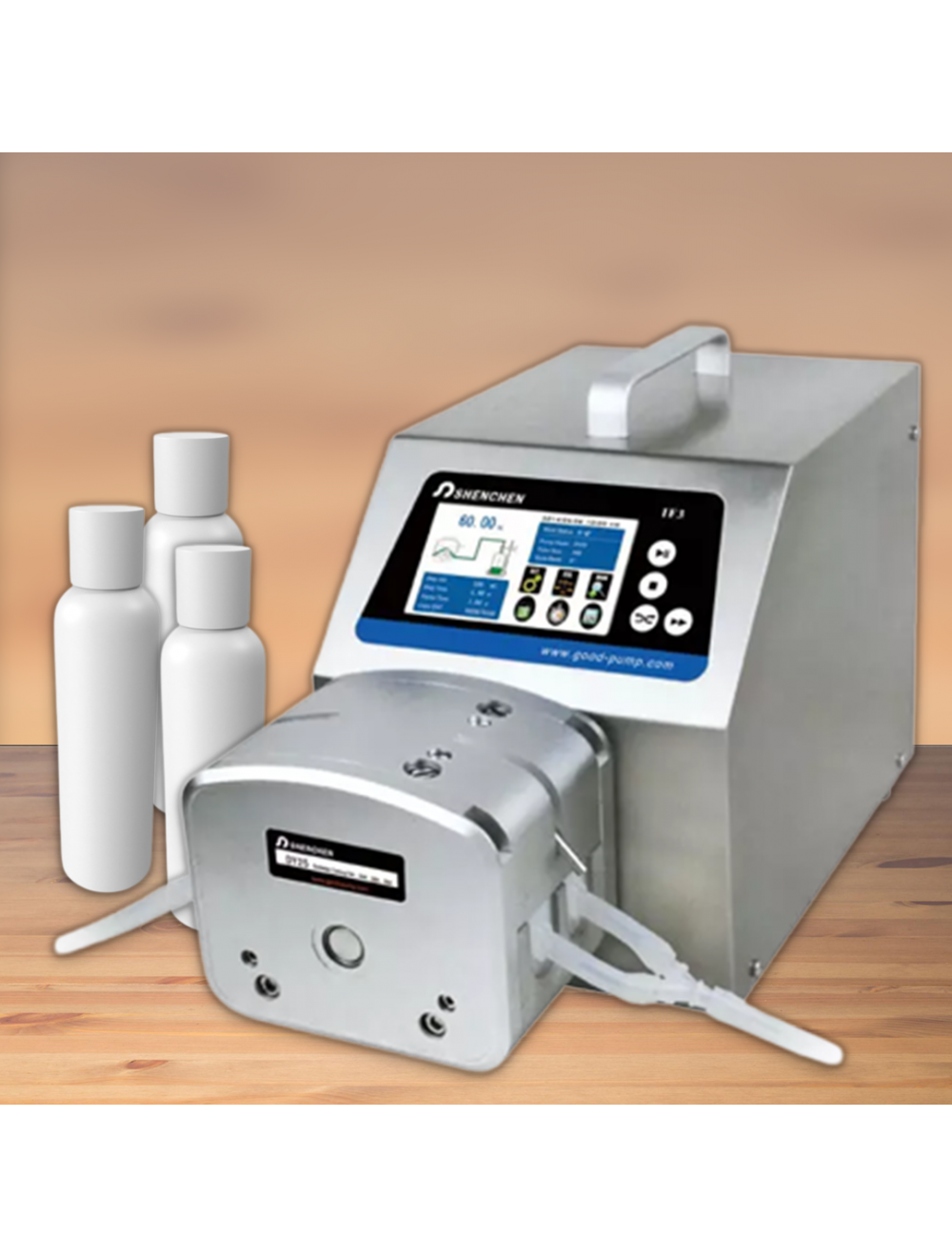

เครื่องบรรจุของเหลว aluminum alloy low-pulsation distribution peristaltic pump (intelligent version) IF3

เครื่องบรรจุของเหลว low-pulsation distribution peristaltic pump (intelligent version) IF3

Touchscreen +

pure import key

304 Stainless

steel casing

CE certification

SGS Certification

================

Shenchen low-pulsation distribution type IF3 peristaltic pump (intelligent version) full model: can preset the dispensing volume, dispensing time, interval time, dispensing times, suction angle.

The animation shows the working status. Data distribution, parameter setting, and system configuration are displayed on the same screen.

It can be connected to a foot switch or receive a switch signal to realize remote control.

It has output signal of motor running status.

The intelligent version of the low-pulsation distribution type peristaltic pump driven by the servo motor adopts the original imported 4.3-inch industrial-grade true color LCD screen display, touch screen control, speed range: 1-350 rpm, flow range 0.1-4340ml/min. Passed The phase difference between the two sets of rollers makes the wave crests and troughs of the fluid complement each other, effectively reducing the pulsation of the fluid. The elastic pressure block assembly with adaptive ‘pressure pipe gap’ function can effectively extend the service life of the hose and truly realize the distribution of small and large amounts of liquid.

================

สเป็ค

- Range of flow
0.1~3337mL/min
Drive: 1F3
Pump Head: DY15.
1.6mm flexible hose with applicable wall thickness
13# Inner diameter: 0.8mm
14# diameter: 1.6mm
19# Inner diameter: 2.4mm
16# Inner diameter: 3.1mm
25 # Inner diameter: 4.8 mm
17# Diameter: 6.4mm
18# diameter: 1.9mm
INDUSTRIAL
Intelligent version
Shenzhen Pumps Co., Ltd
SHENCHEN
servo touch screen operation
motor driven animation display
a day when one´s daily convenience

============================
- Range of flow
4.2~4340mL/min
Drive: 1F3
Pump head: DY25
2.4mm flexible hose with suitable wall thickness
15# diameter: 4.8mm
24# Diameter: 6.4mm
35# diameter: 1.9mm
36# Diameter: 9.6mm
touch screen operation
motor driven animation display
servo
INDUSTRIAL
Intelligent version
Shenzhen Pumps Co., Ltd
SHENCHEN
