เครื่องบรรจุของเหลว ห้องแล็บแลป F6-3L 0.3（Mpa）3600（m3/h） 5.35kg 220（V）Flow Rate: 2.11~3600ml/min laboratory peristaltic pump constant flow pump

เครื่องบรรจุของเหลว ห้องแล็บแลป F6-3L 0.3（Mpa）3600（m3/h） 5.35kg 220（V）Flow Rate: 2.11~3600ml/min laboratory peristaltic pump constant flow pump

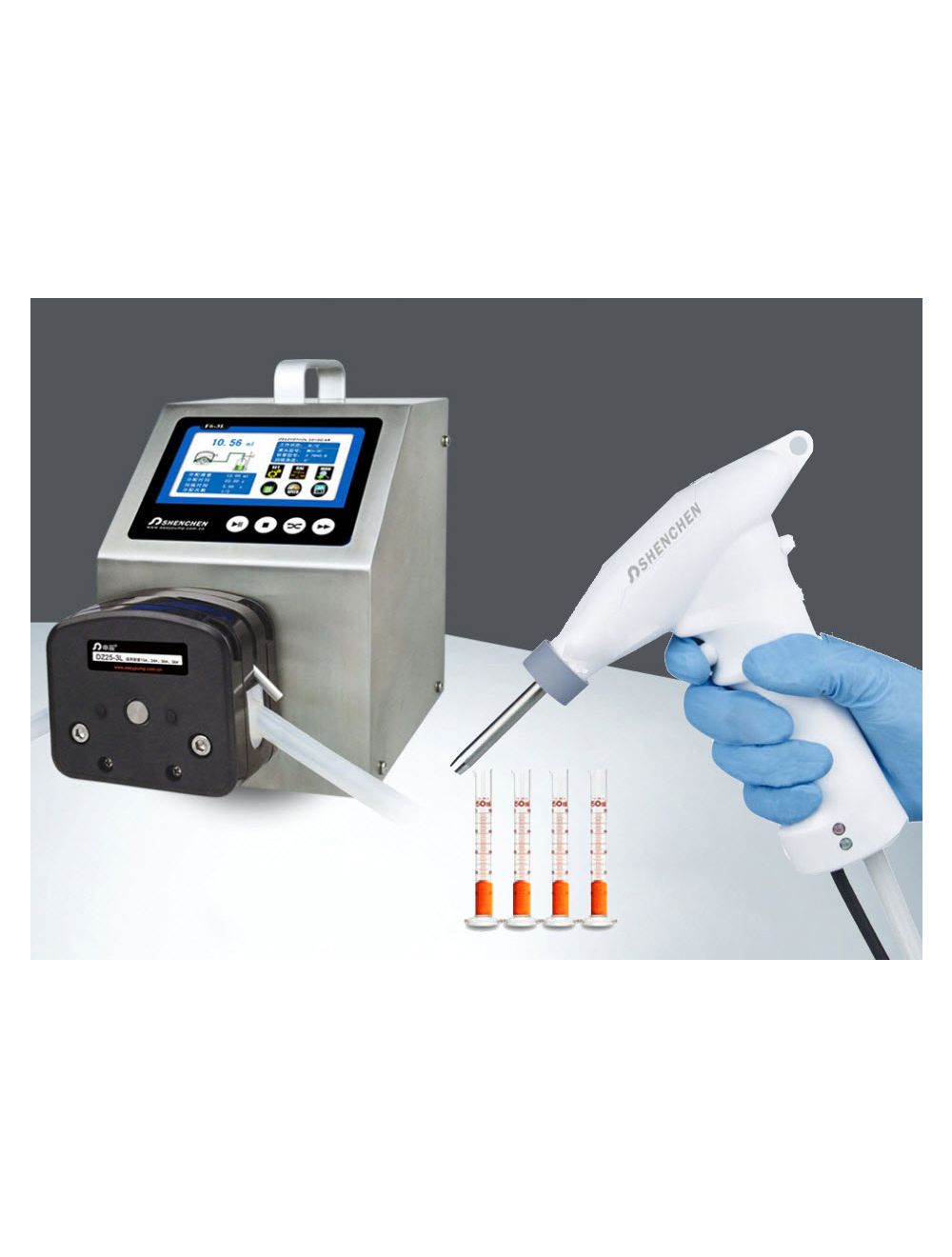

hand-held liquid divider
Handheld liquid divider with optional accessories, based on ergonomic design
easy operation connection with peristaltic pump external control
realizable transmission and distribution functions.with start-stop, stop-stop,
"Full speed function. Power supply and running light, indicating work"
condition, with hanging holes, to be suspended and placed.

range of flow 2.11 – 3600 mnlitres per minute
range of revolution 1-600 rpm
speed resolution 0.01 rpm
distribution range 0.01-9999.99 milliliters.
distribution resolution 0.01 ml
allocate time 0.1-9999.9Nine seconds.
interlude 0.1-9999.9Nine seconds.
time resolution 0.01 sec
frequency of distribution 1-99999, set upPut " " into infinite number of times
angle of aspiration 0-360 degrees.
distribution accuracy
Type of motor servo motor
display mode 4.3 inches. Industrial grade.color liquid crystal screen
control mode
key life 300,000 times.
start-stop and change-over signal passive switching quantitative signal, e.g.Pedal Switch Active Switch Measurement Signal: 5V12 V24 V Yamelect
output interface Output Motor Operating Status (Set)open-circuit voltage output)
communication interface RS232,RS485 Support for Modbus ProtocolRTU mode
applicable power supply 220V+10%50Hz/60 Hz (Standard) 110V10%50HZ/60 Hz (Selected)
exit pressure 0.3Mpa
Drive dimensions (LxWx)H) 230x152x230mm (LxWxH)
drive weight 5.02kg
consumption of power <80W
ambient temperature 0-40C
relative humidity <80%
protective rating IP31

metal handle
metal handle for easy handling.

external control input
The external start-stop function can be used to connect the foot switch or the foot switch.
To realize uniform control of the upper machine while installing the production line.
to produce or receive a stop-pour signal.

304 stainless steel casing
304 stainless steel outsidefor industrial use.
