เครื่องขึ้นรูปทำหลังคา metal sheet tile press 840 roof tile

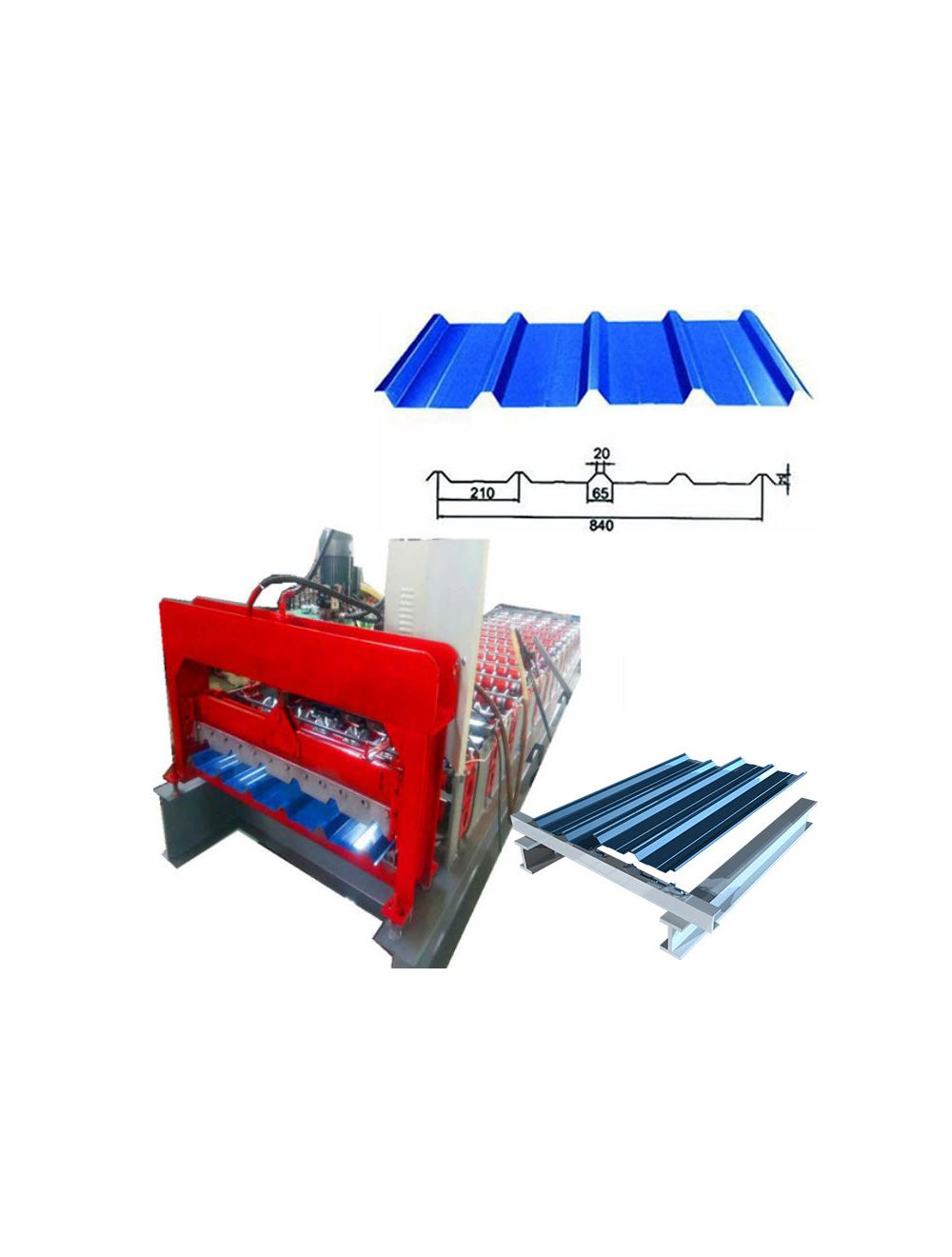

Widening type 840 color steel tile press equipment

The fully automatic tile press is composed of unwinding, forming, and post-forming cutting. The products produced by the product have a smooth and beautiful appearance, uniform paint pattern, high strength, and durability. They are widely used in industrial and civil buildings, such as factory buildings, warehouses, hangars, stadiums, etc. Exhibition halls, theaters and other rooms and walls. Its components include: complete machine, PLC computer control system, hydraulic pump station system, fully automatic post-shearing system. Features: The color steel plate equipment adopts high-level automatic control software to realize production information management. The entire unit automation control system adopts a highly integrated network, which makes the automation system more superior in performance. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

1. Equipment installation size: 5000mm×1500mm×1000mm

2. The total weight of the equipment: about 2.5T

3. Main engine power: 3kw

4. Hydraulic shearing power: 3kw

5. Hydraulic station pressure: 10-12mpa

6. Rally: 840 type 23mm; 9 210mm;

7. Working speed: 0-12m/min

8. 840 molding row number 11 rows of roller molding

9. The shaft is made of 45# steel, the diameter of the shaft body is 70mm after processing, and the mold wheel is made of 45# steel, and the surface is hard-plated.

10. The transmission adopts 6-point sprocket, chain transmission, 4#3Kw planetary cycloid reducer, stable movement and no noise.

11. The middle plate connection adopts cast steel pull plate to ensure that the machine does not deform when rolling the thick plate

The transmission bearing adopts 210 double-sealed bearings, which are maintenance-free to extend the operating life of the machine

12. The computer control system adopts the high-intelligence industrial electronic programmer Delta PLC control system, which is simple in operation, accurate in accuracy, stable in performance, with a length accuracy of less than 0.1mm, and a board output speed of 8-10 meters per minute.
